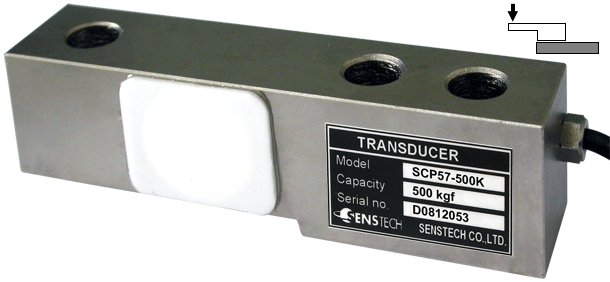

 FEATURE
호퍼 스케일, 플래트 홈 스케일, 펙커 스케일 높이가 낮고 가벼우며, 용량에 비해 소형이다.
은회색의 도금, 양쪽옆면에 백색 실리콘처리.

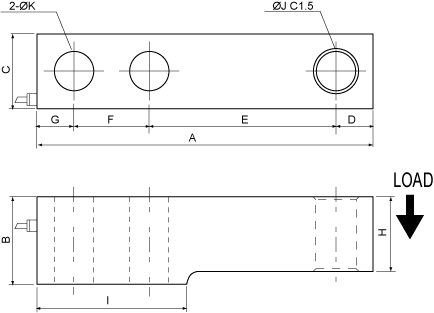

DIMENSION TABLE (unit : mm)
| Model |
Capacity |
A |
B |
C |
D |
E |
F |
G |
H |
I |
ØJ |
ØK |
Weight(kg) |
| SCP |
50 ~ 300kgf |
135 |
36 |
26 |
17 |
75 |
25 |
18 |
32 |
58 |
11.5 |
11.5 |
0.5 |
| 500kgf ~ 2tf |
135 |
38 |
30 |
17 |
75 |
25 |
18 |
34 |
58 |
13.5 |
13.5 |
1.1 |
| 3tf ~ 5tf |
170 |
48 |
38 |
20 |
85 |
50 |
15 |
39 |
79 |
18.5 |
18.5 |
2.3 |
| 6tf |
203 |
48 |
50 |
23 |
95 |
62 |
23 |
39 |
110 |
24.5 |
24.5 |
3.5 |
| 10tf ~ 12tf |
263 |
60 |
60 |
30 |
118 |
90 |
25 |
52 |
143 |
26 |
26 |
9 |
| SCP57 |
500kgf ~ 2tf |
131 |
38 |
30 |
12.7 |
76.2 |
25.4 |
16.7 |
34 |
57 |
13.5 |
13.5 |
1.1 |
| 3tf ~ 5tf |
171 |
44.5 |
38 |
19 |
95 |
38 |
19 |
38 |
76.2 |
20.5 |
20 |
2.3 |
| 10tf |
222.3 |
57.2 |
50.8 |
25.4 |
120.7 |
50.8 |
25.4 |
50.8 |
108 |
26.2 |
26.2 |
9 |
|
DIMENSION |
Wiring Information |
 |
 |
SPECIFICATION
| Rated capacity (R.C) |
50, 100, 150, 300, 500kgf, 1 , 2, 3, 5, 6, 10, 12tf |
| Rated output (R.O) |
2.0mV/V ±0.1% |
| Nonlinearity |
0.02% of R.O. |
| Hysteresis |
0.02% of R.O. |
| Repeatability |
0.02% of R.O. |
| Creep (20min) |
0.03% of R.O. |
| Zero balance |
±5% of R.O |
| Temperature effect, on zero balance |
0.05% R.O./10℃ |
| Temperature effect, on rated output |
0.02% LOAD/10℃ |
| Temperature range, compensated |
-10 ~ 50℃ |
| Temperature range, safe |
-20 ~ 80℃ |
| Terminal resistance input |
350 ±30Ω |
| Terminal resistance output |
350 ±3Ω |
| Insulation resistance bridge/case |
2000MΩ |
| Excitation recommended |
10V |
| Safe overload |
150% R.C |
| Cable length |
50kgf~6tf : Ø5±0.3mm 4core, 3m / 10tf~12tf : Ø7±0.3mm 4core, 3m |
|
